Cervical stand-alone

PEEK-Optima

Cervical Stand alone implant made of peek optima and held together with two screws and a locking tab.
side view of the peek cervical stand alone cage. Shows the angle of the screws.
peek optima material cervical stand alone implant device

MACHINED TITANIUM

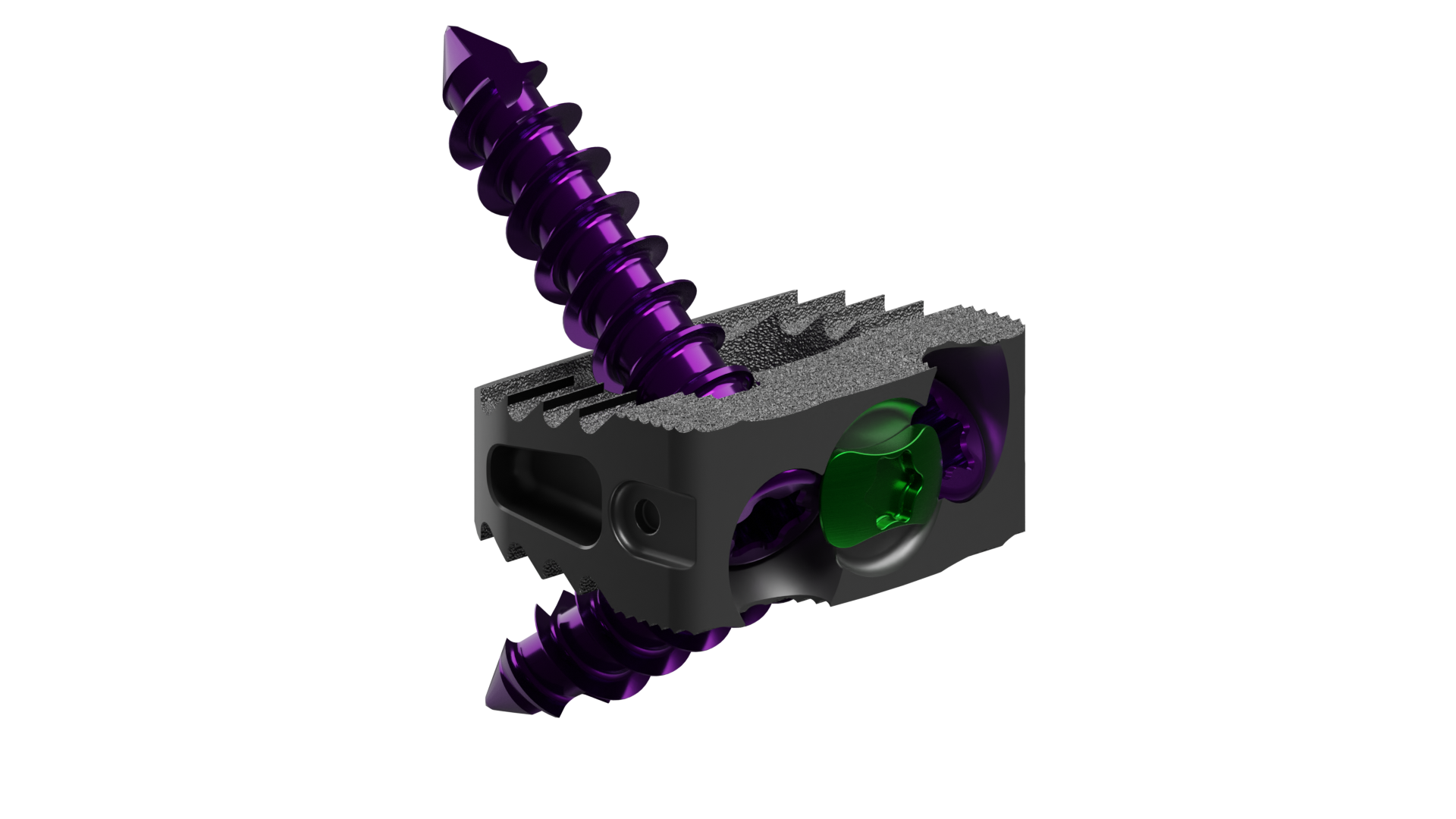

Silver stand alone cage for cervical spine with pointed purple screws and aggressive teeth
Silver Machined Titanium Stand alone cervical ibfd cages with sharp pointed screws
silver cervical stand alone implant with aggressive teeth and sharp purple screws.

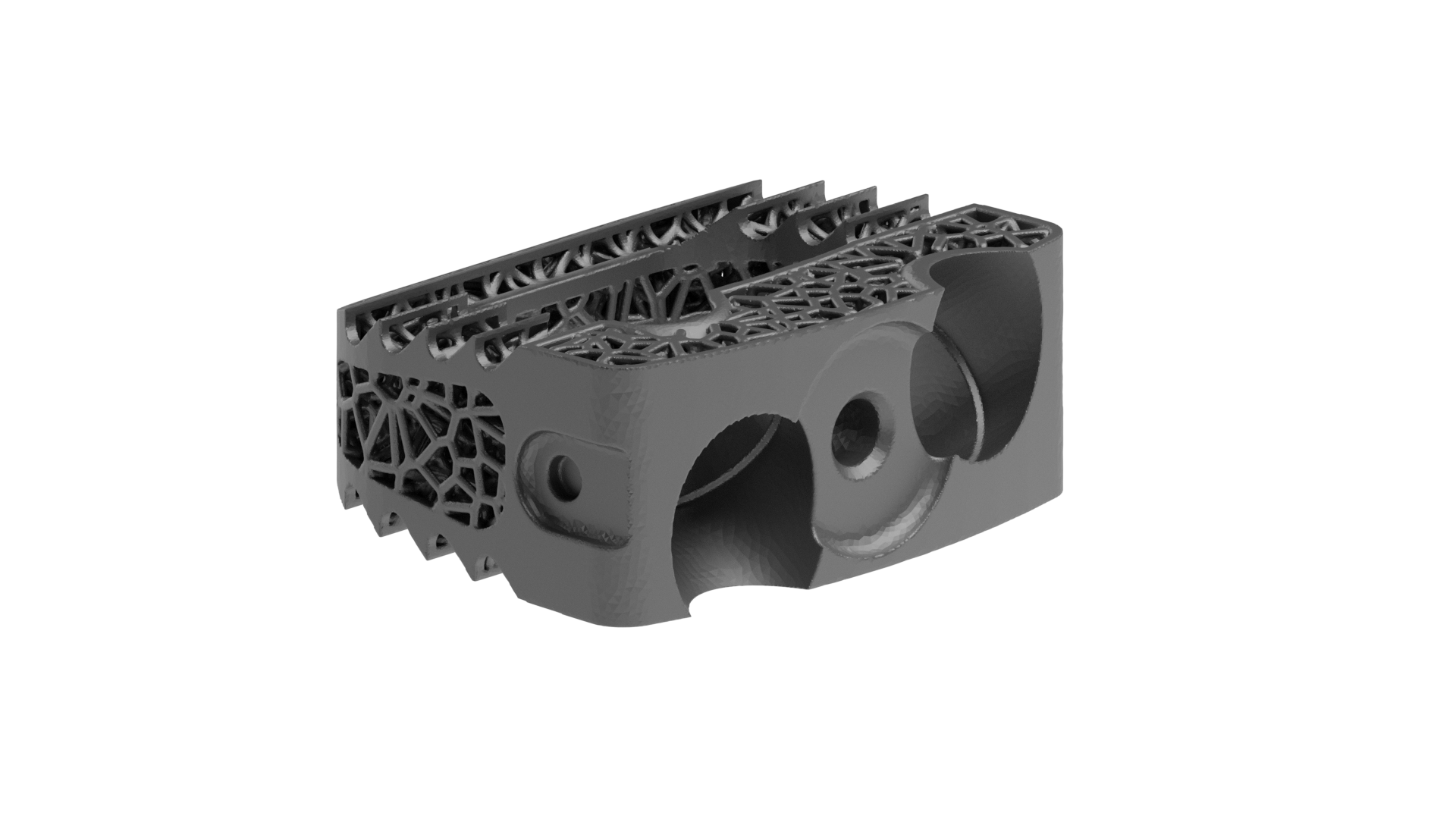

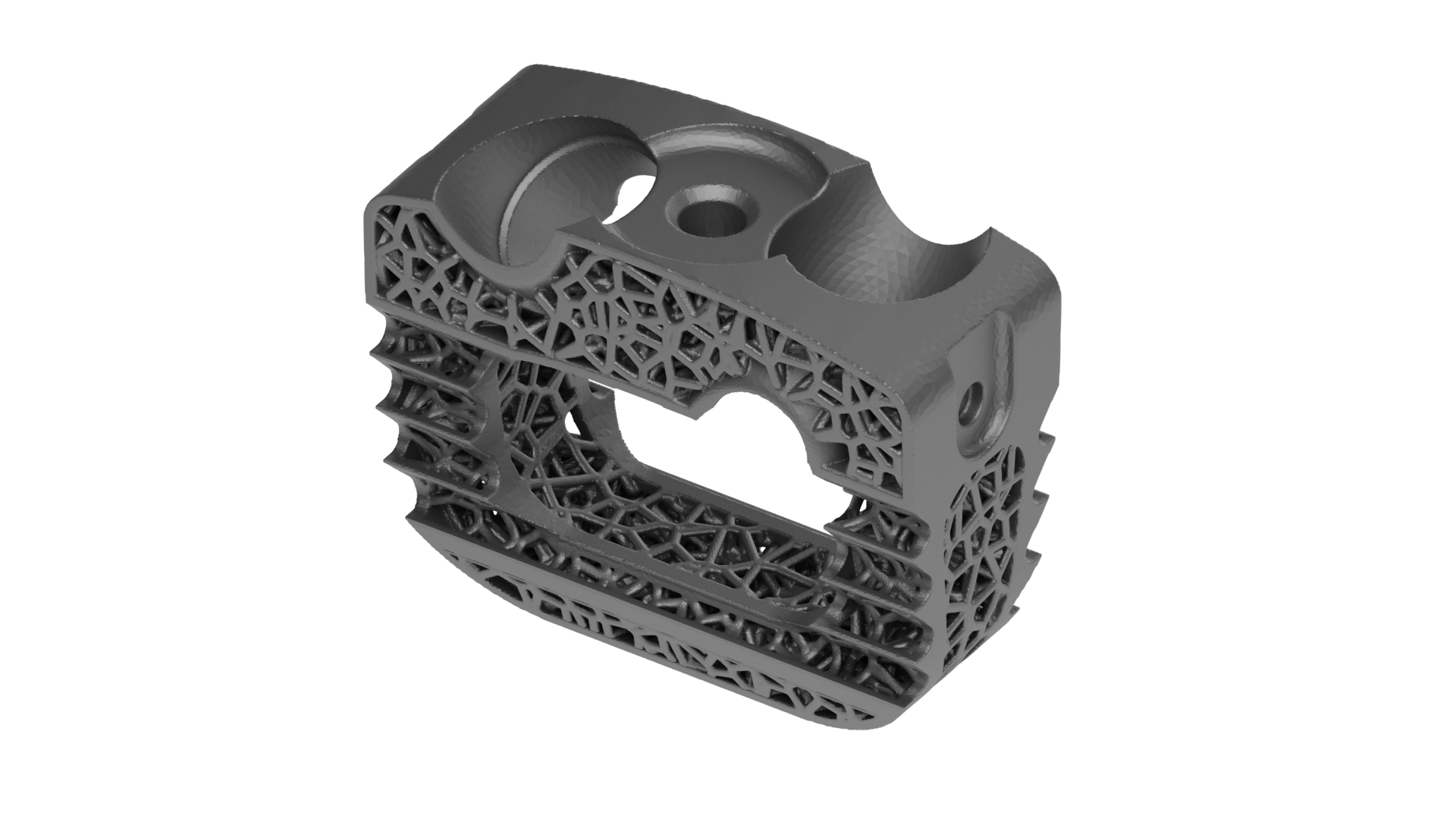

3D Printed Titanium

PRODUCT FEATURES
  • 3 Material options:
    • Machined PEEK
    • Machined Titanium
    • 3D Printed Titanium
  • Tapered nose allows for ease of insertion
  • Aggressive lordotic teeth for implant fixation
  • Micro-teeth on top faces prevent micro-migration
  • Lordosis allows for ease of insertion and self-distraction
  • Large central opening for maximum bone graft material
  • Locking tab shows visible security of screws
  • Universal driver for screws and locking tab
  • Self-tapping, self-drilling screws
  • Locking tab fixed to implant
back view of cervical stand alone cage made of peek. Shows aggressive teeth and pointed screws.
IMPLANT PROFILES

PROFILE

14 x 12mm

15 x 13mm

17 x 14mm

19 x 16mm

17 x 12mm

HEIGHT

6 – 12mm

6 – 12mm

6 – 12mm

6 – 12mm

6 – 12mm

LORDOSIS

0°, 6°

0°, 6°

0°, 6°

0°, 6°

0°, 6°



SCREWS

Fixed

Variable

Image shows the fixed and variable screw options for the cervical stand-alone implant.

SCREWS

3.75mm

4.00mm

4.25mm

LENGTHS

10 – 18mm | 1mm Fixed & Variable

10 – 18mm | 1mm Fixed & Variable

10 – 18mm | 1mm Fixed & Variable

Note: Instruments for these procedures are available per request. Contact us today for more information regarding our instrumentation.
