Pedicle System
Patent No. 8,574,274 | 8,940,031 | 9,510,869 | 9,668,777 | 10,219,838
PRODUCT FEATURES
  • Material: Machined Titanium
  • Triple Lead Screw Design
  • “S3” style, standard non-cannulated screw profile
  • “C3” style, cortical / cancellous cannulated screw profile
  • Tapered nose allows for ease of insertion
  • 5 tulip options for open or MIS technique
  • Friction tulip for constant head control
  • Screw diameters 4.50, 4.75, 5.50, 6.50, & 7.50
  • Screw lengths 25-60, 5mm lengths
  • Fits 5.5mm rod, 6.0 “slim” rod
  • 3.5 & 4.0 hex set cap options available

S3 Standard Series

PRODUCT FEATURES
  • Material: Machined Titanium
  • Triple Lead Screw Design
  • “S3” style, standard non-cannulated screw profile
  • 5 tulip options for open or MIS technique
  • Friction tulip for constant head control
  • Screw diameters 4.50, 4.75, 5.50, 6.50, & 7.50
  • Screw lengths 25-60, 5mm lengths
  • Fits 5.5mm rod, 6.0mm “slim” rod
  • 3.5 & 4.0 hex set cap options available



SCREW PROFILES

SCREW OPTIONS

4.50mm

4.75mm

5.50mm

6.50mm

7.50mm

LENGTHS

25 – 60mm | 5mm

25 – 60mm | 5mm

25 – 60mm | 5mm

25 – 60mm | 5mm

25 – 60mm | 5mm

C3 Cortical / Cancellous Series

Emerald Green Screw with tighter top threads and a gold tulip / tower.
PRODUCT FEATURES
  • Material: Machined Titanium
  • Triple Lead Screw Design
  • “C3” style, cortical / cancellous cannulated screw profile
  • Tapered nose allows for ease of insertion
  • 5 tulip options for open or MIS technique
  • Friction tulip for constant head control
  • Screw diameters 4.50, 4.75, 5.50, 6.50, & 7.50
  • Screw lengths 25-60, 5mm lengths
  • Fits 5.5mm rod, 6.0mm “slim” rod
  • 3.5 & 4.0 hex set cap options available
SCREW PROFILES

SCREW OPTIONS

4.50mm

4.75mm

5.50mm

6.50mm

7.50mm

LENGTHS

25 – 60mm | 5mm

25 – 60mm | 5mm

25 – 60mm | 5mm

25 – 60mm | 5mm

25 – 60mm | 5mm

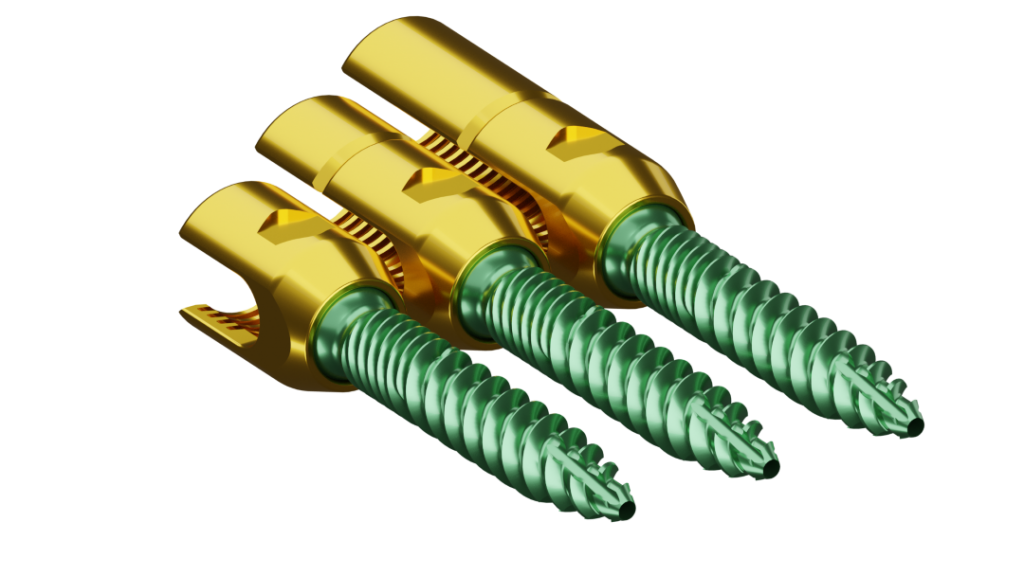

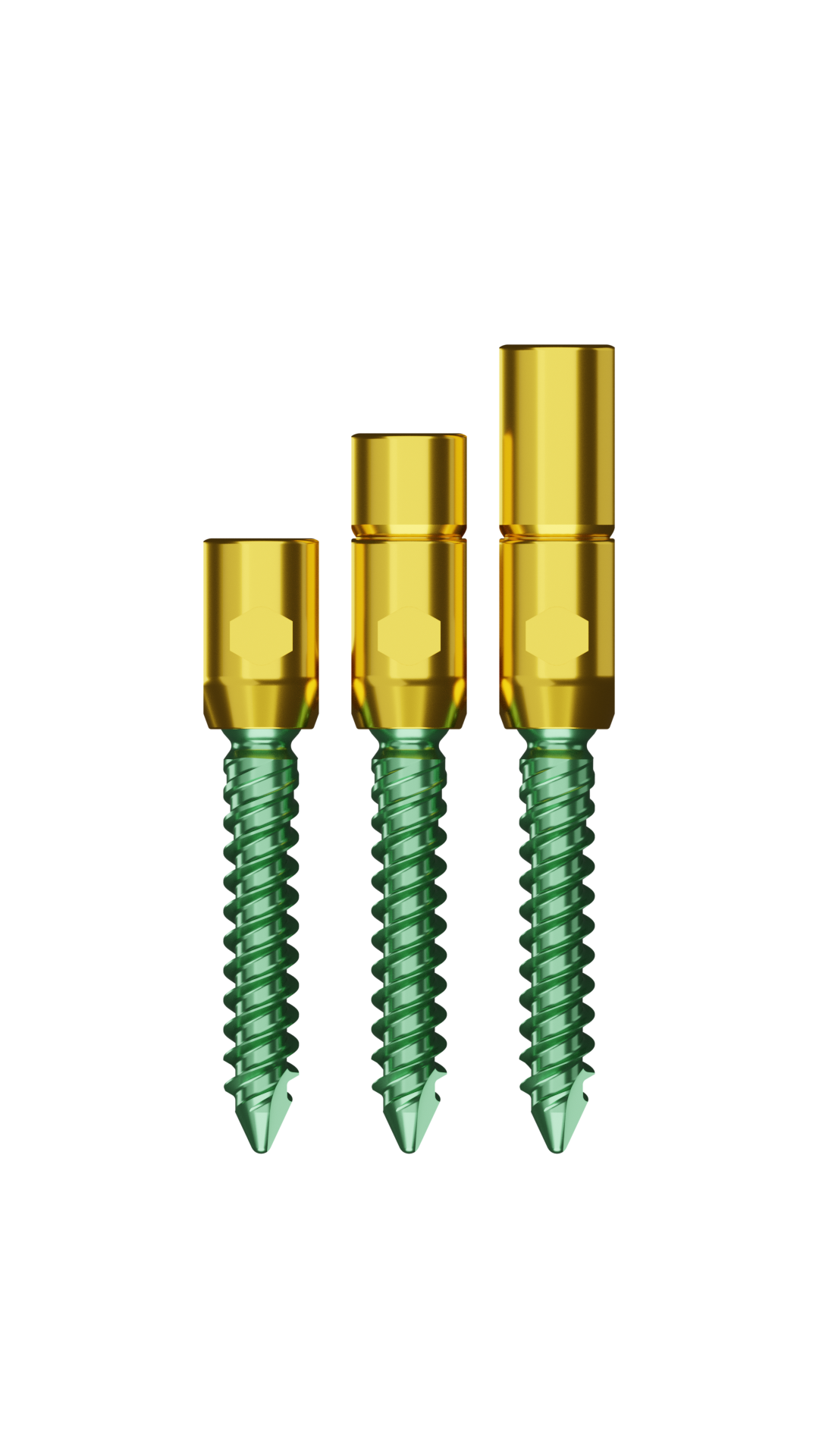

C3 Surfaced Series

Gold tower "tulip" on top of roughened pedicle screw
PRODUCT FEATURES
  • Triple lead screw design
  • Material: machined titanium
  • Not coated, roughened titanium
  • 5 tulip options for open or MIS technique
  • Friction tulip for constant head control
  • Tapered nose allows for ease of insertion
  • “C3” style, cortical / cancellous cannulated screw profile
  • Screw diameters 4.50, 4.75, 5.50, 6.50, & 7.50
  • 3.5 & 4.0 hex set cap options available
  • Screw lengths 25-60, 5mm lengths
  • Fits 5.5mm rod, 6.0 “slim” rod
SCREW PROFILES

SCREW OPTIONS

4.50mm

4.75mm

5.50mm

6.50mm

7.50mm

LENGTHS

25 – 60mm | 5mm

25 – 60mm | 5mm

25 – 60mm | 5mm

25 – 60mm | 5mm

25 – 60mm | 5mm

Surface Technology: See The Difference







Left: Machined Ti

Right: Surfaced

comparison of smooth machined titanium pedicle open screw versus the surfaced, grit blasted pedicle screw
SURFACE TECHNOLOGY

The purpose of surface technology is to accelerate the osseointegration process.

Rod Options

5.50mm Open Straight Rod, 5.50mm Curved Rod, 5.50mm Sub-Nose Rod (available upon request), 5.50mm Bullet Nose Rod, 5.50mm Point Nose (available per request) and 6.00mm Cobalt Chrome Slim Rod

5.50 Open Straight

5.50 Curved

5.50 Sub-Nose*

5.50 Bullet Nose

5.50 Point Nose*

6.00 Cobalt Chrome “Slim”

5.50mm Open Straight Rod, 5.50mm Curved Rod, 5.50mm Sub-Nose Rod (available upon request), 5.50mm Bullet Nose Rod, 5.50mm Point Nose (available per request) and 6.00mm Cobalt Chrome Slim Rod Options
  • 6 rod options
  • 3 rod inserter options
  • Grit blasted for optimal grip
  • Fits eminent spine tulip system
  • All 5.50 rods made from titanium
  • 6.0 “Slim rod is made of cobalt chrome
  • Lengths:
    • 30 – 90 | 5mm increments
    • 100 – 160 | 10mm increments
    • 180, 200, 250, 300, & 400
  • *Available per request only

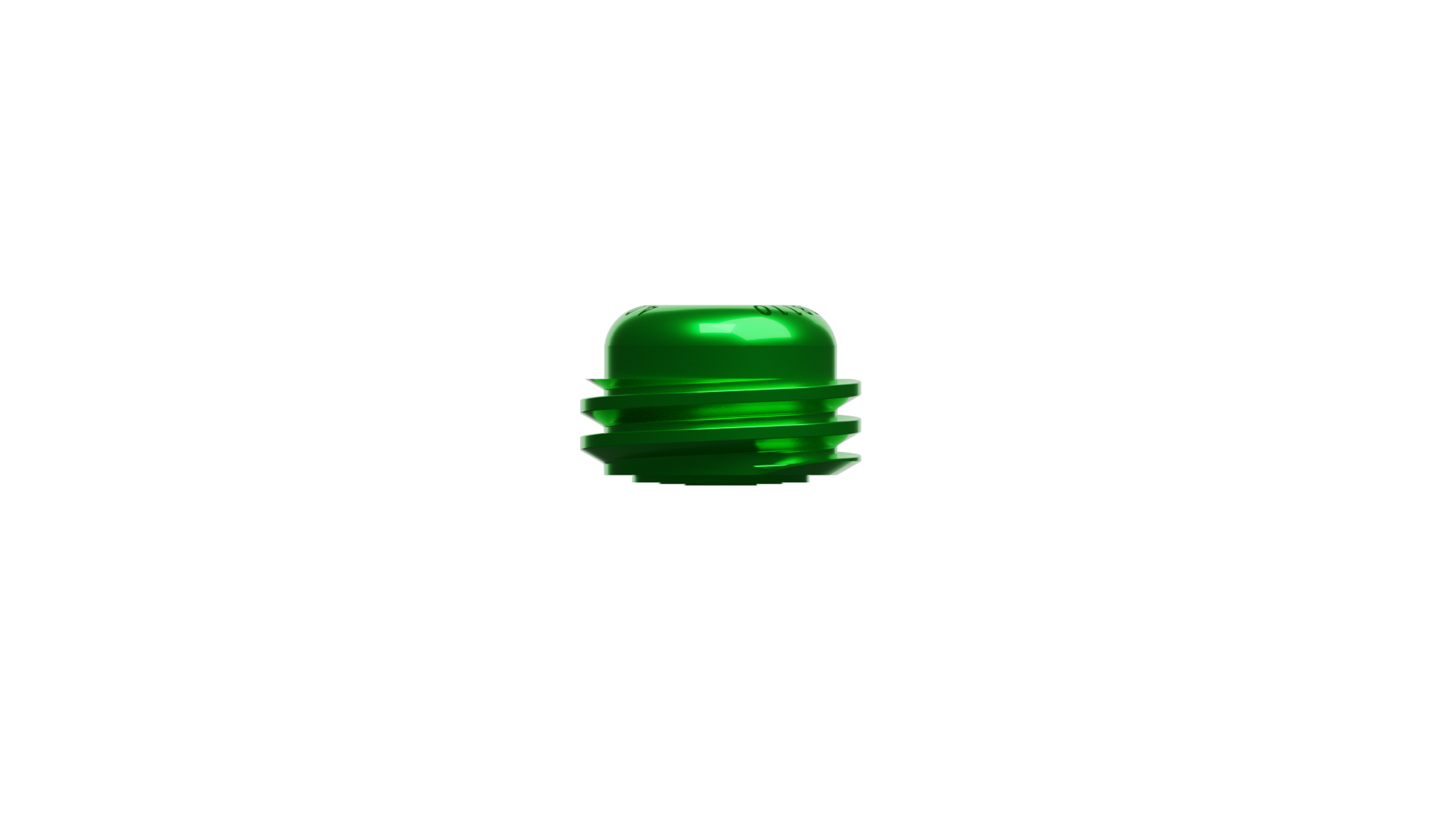

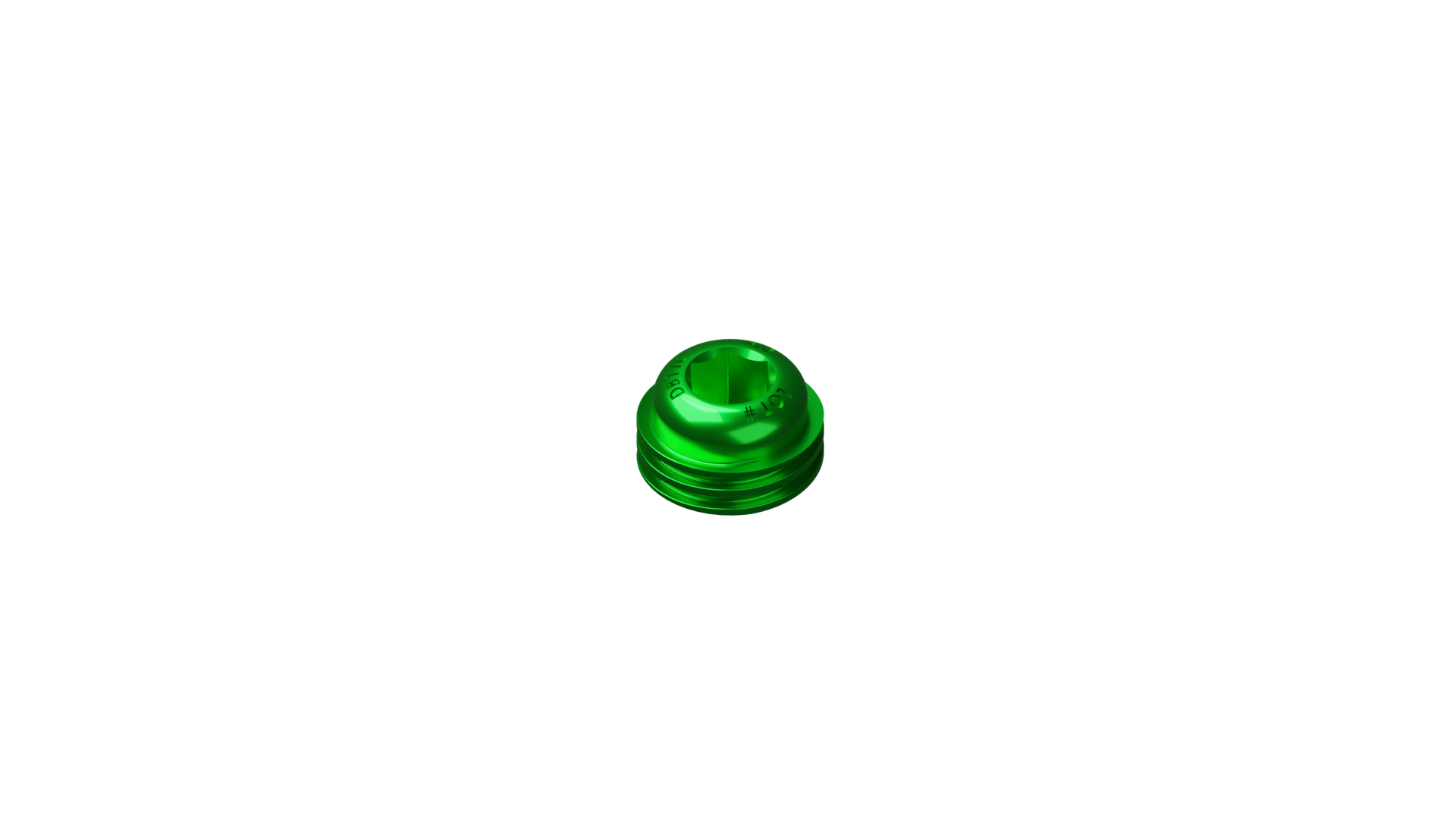

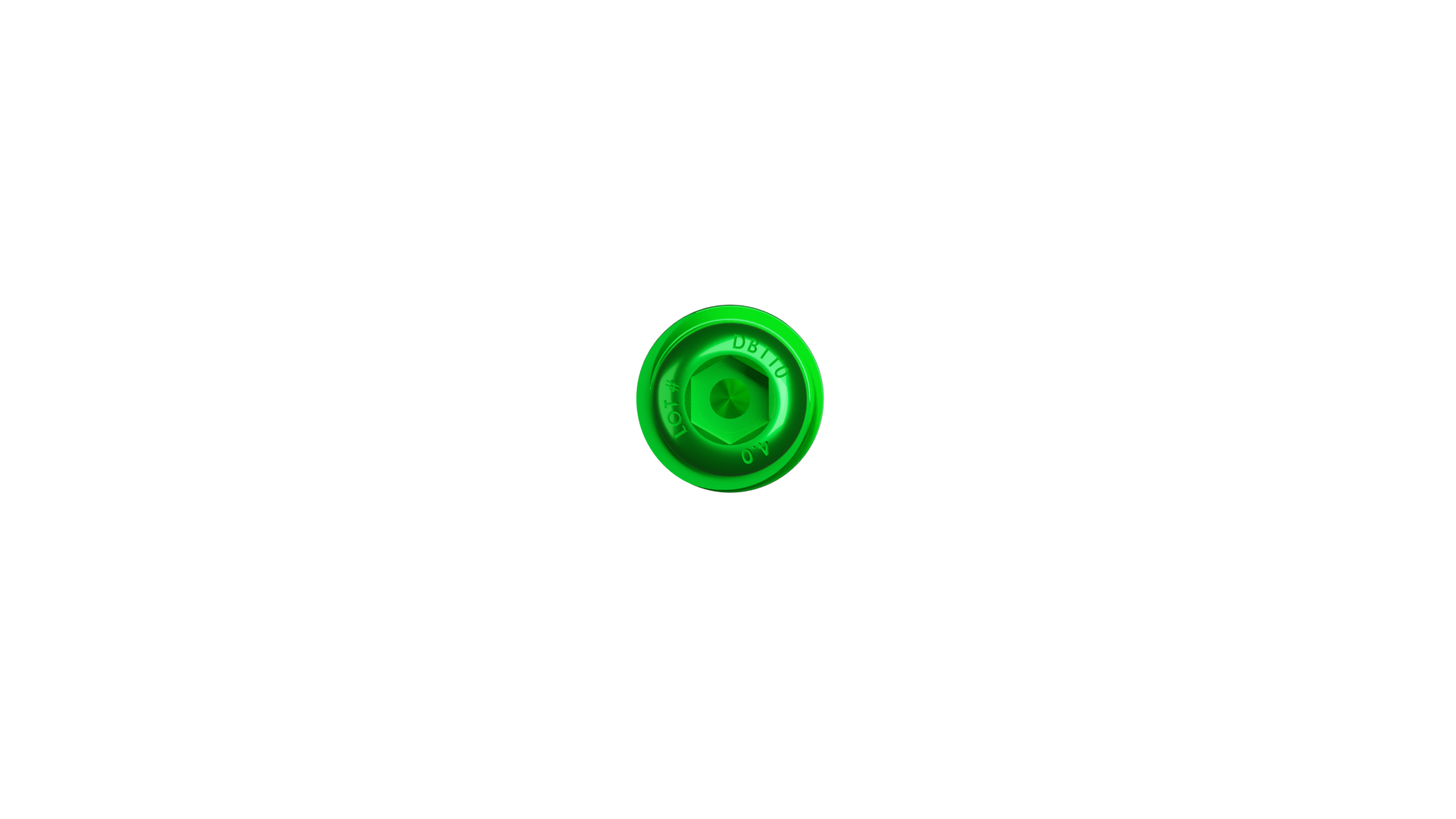

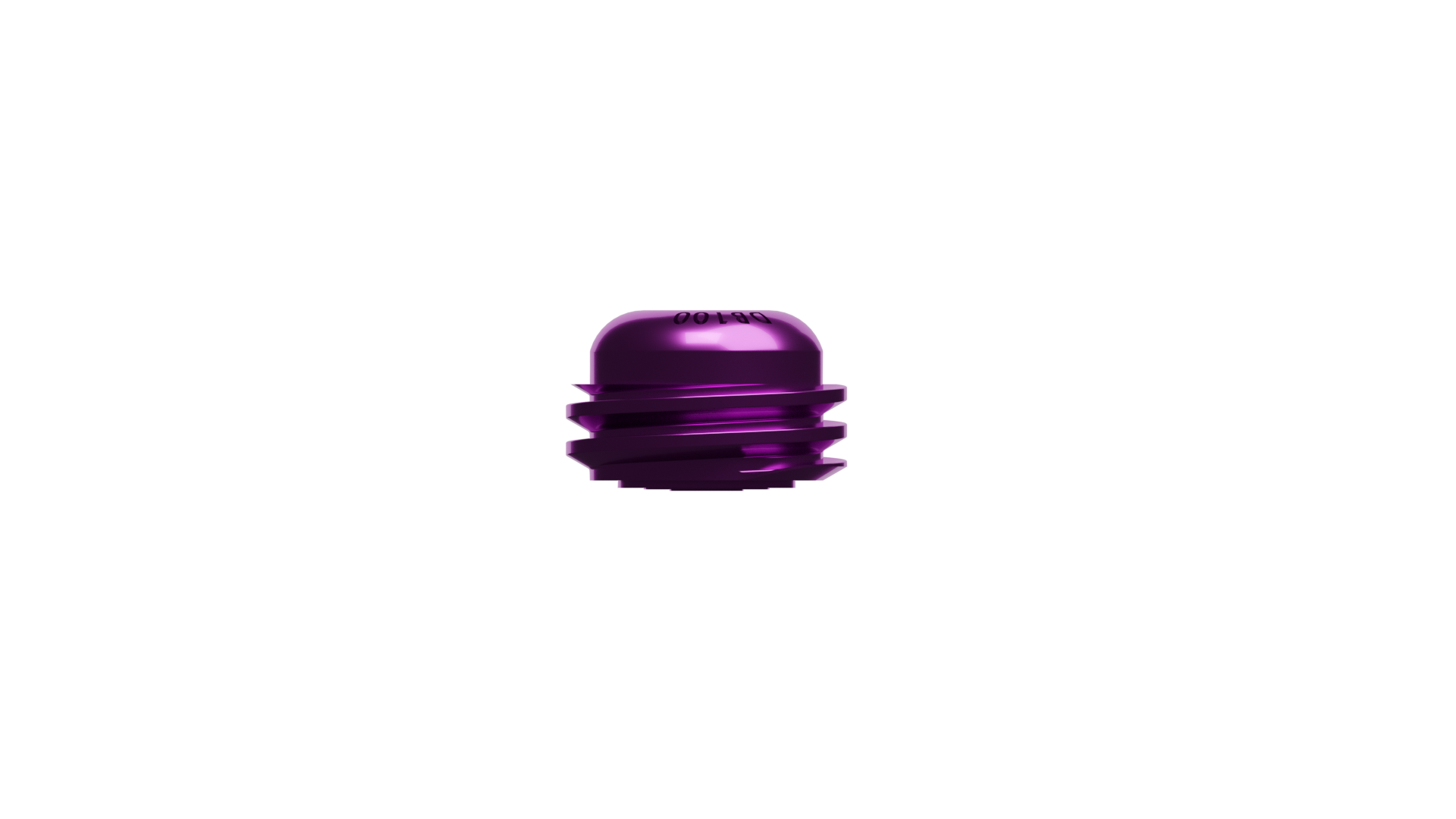

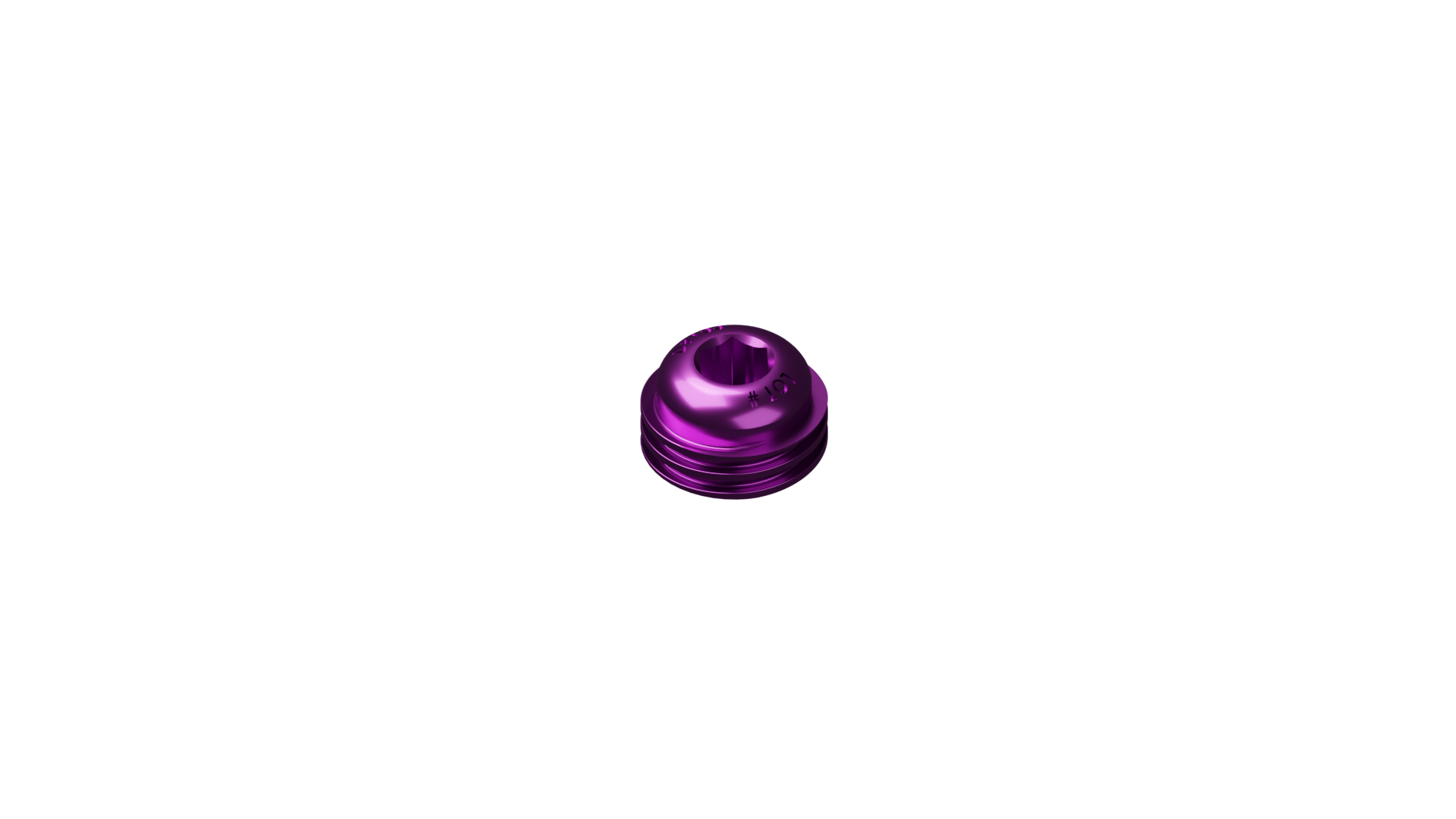

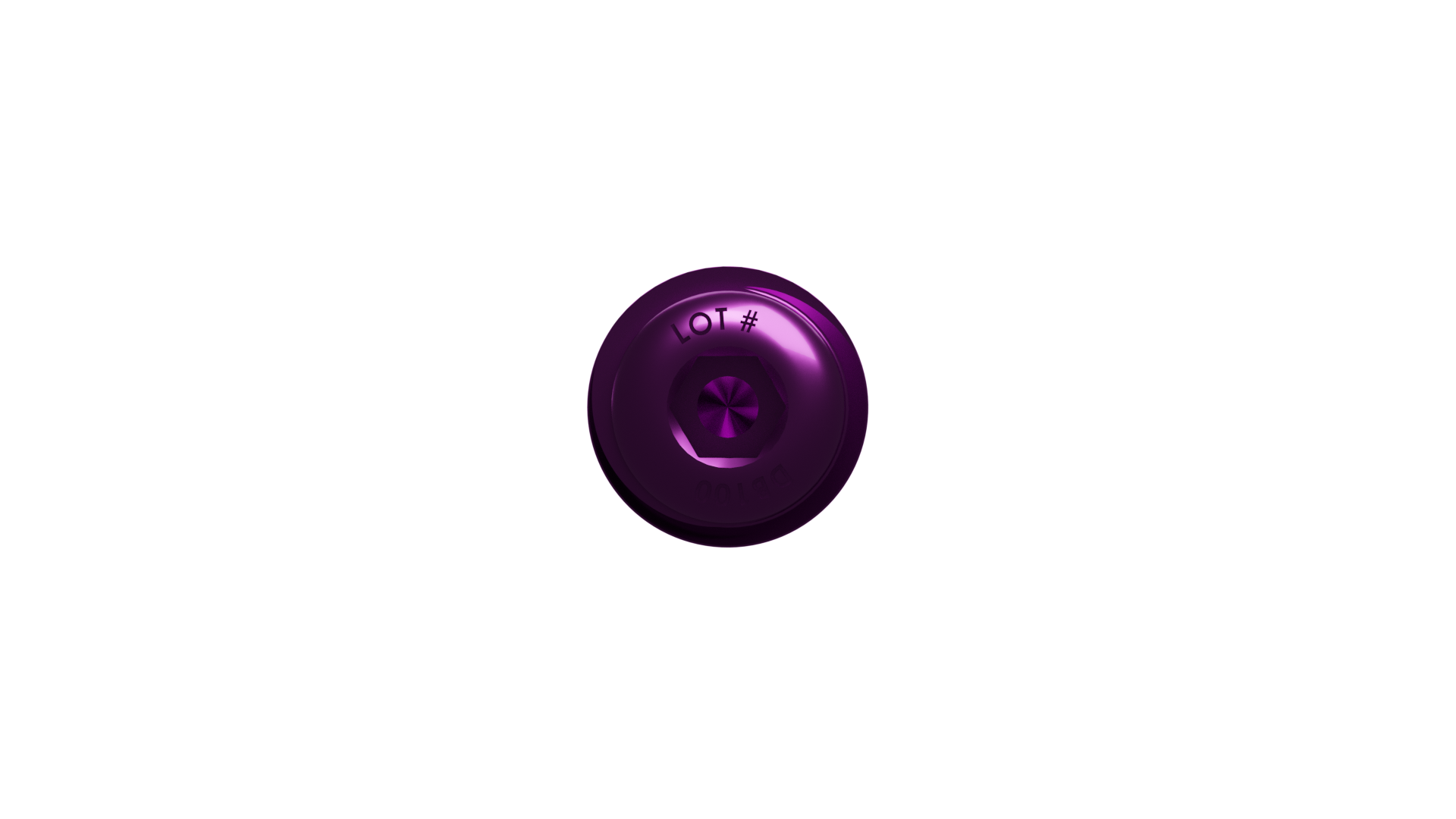

SET CAPS

3.5 Hex

4.0 Hex

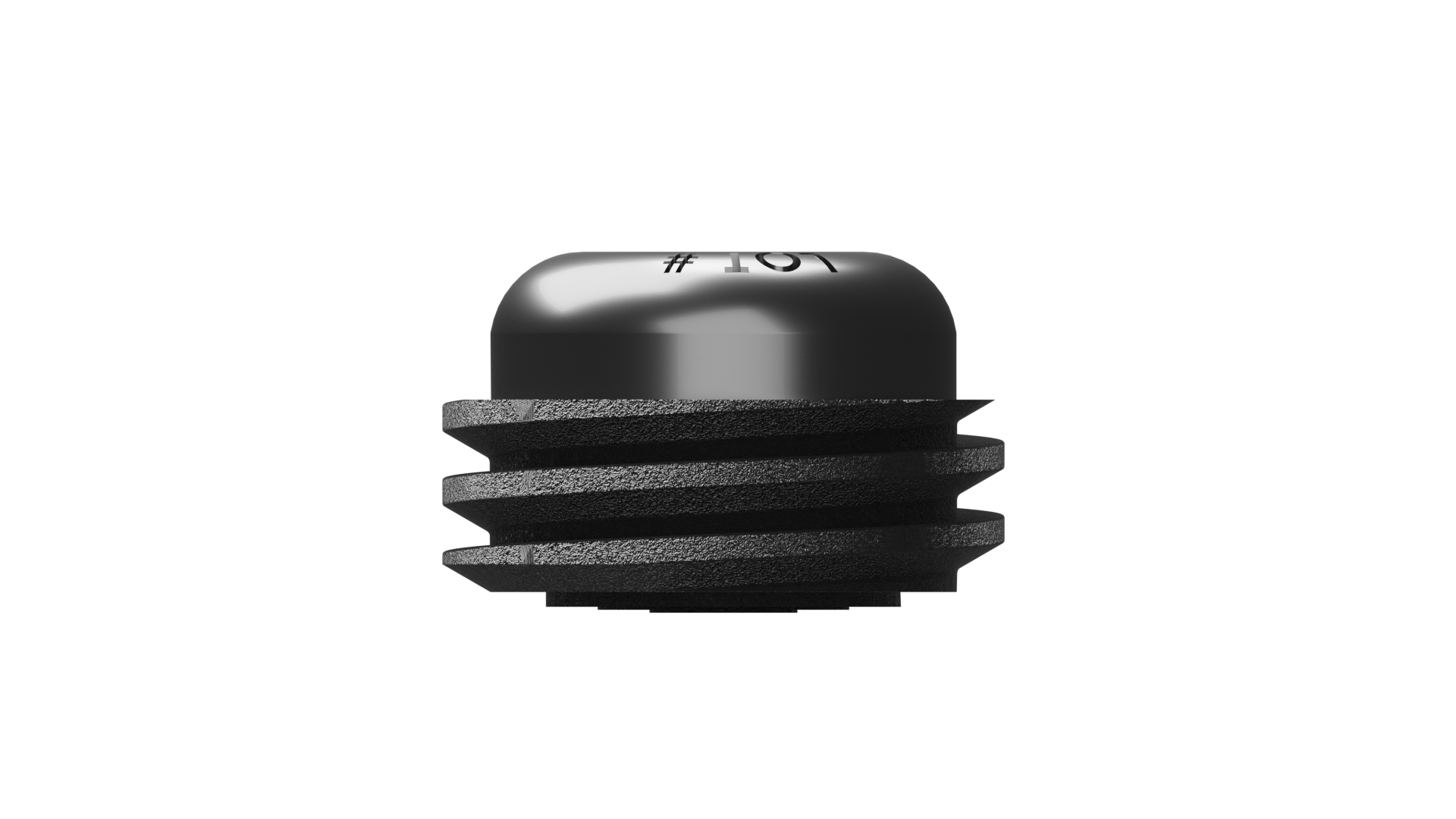

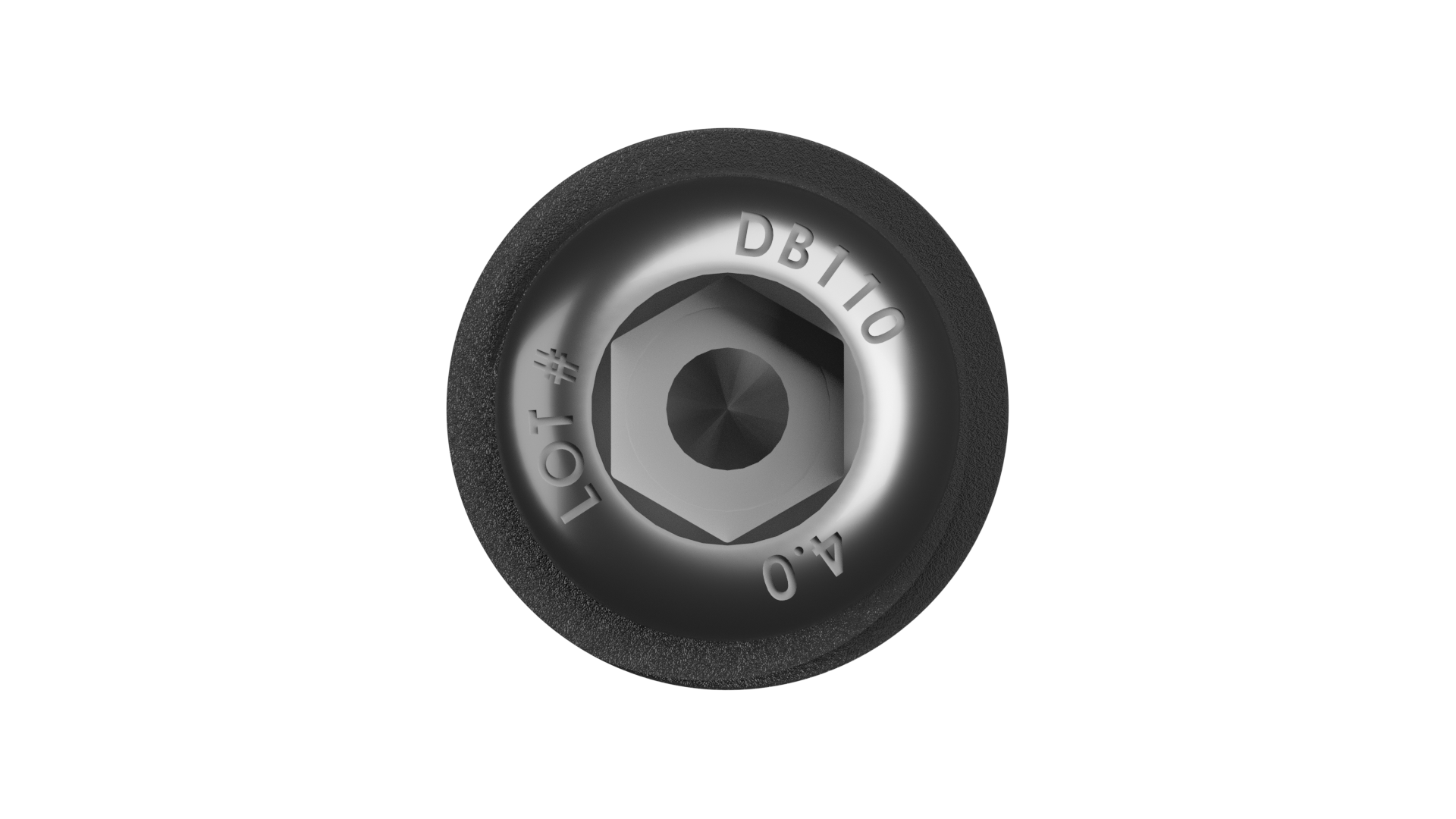

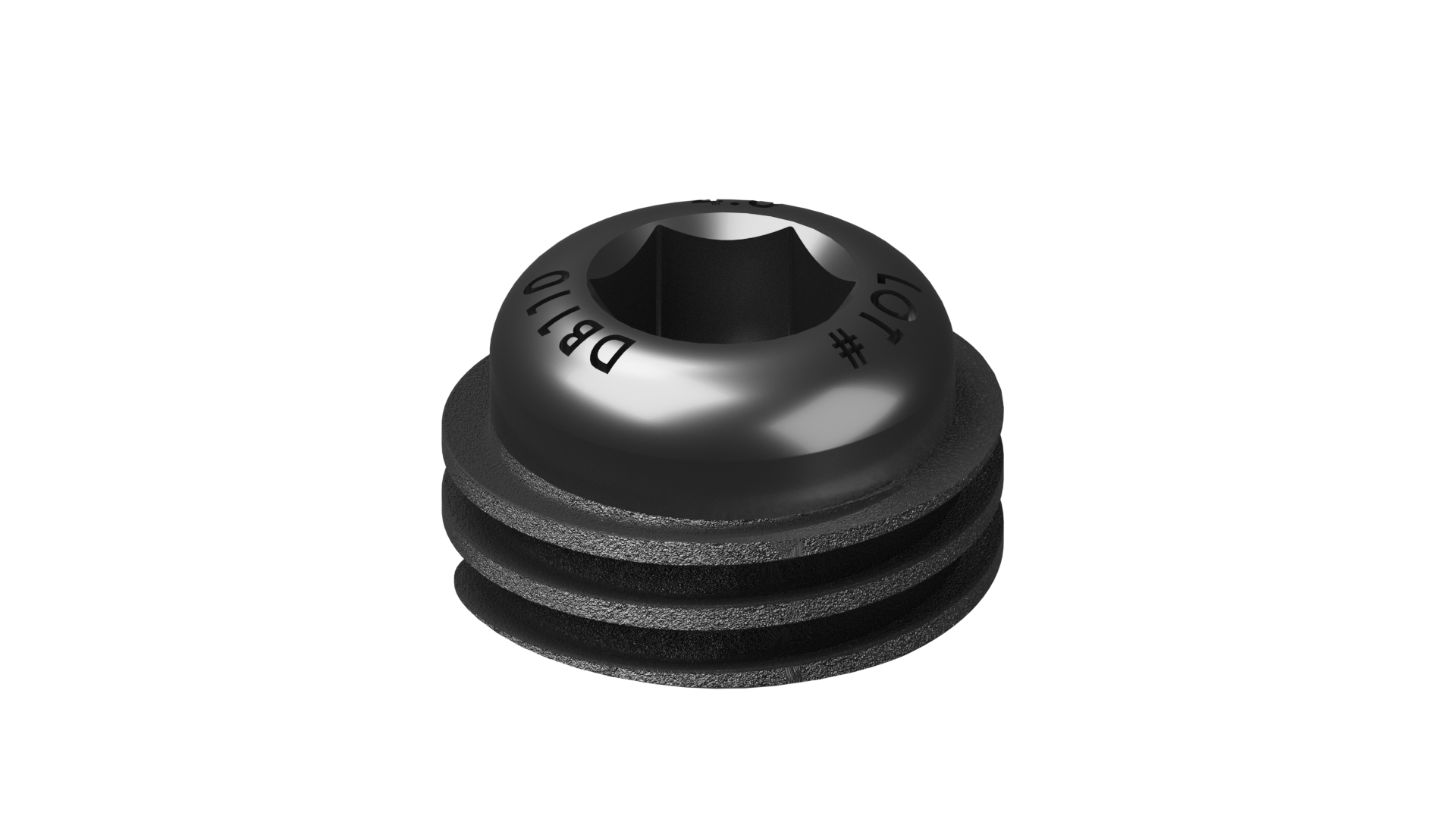

4.0 Grit Blasted Hex

Cross Link System

Small medium and large cross connectors
  • Material: Titanium
  • Telescopic fit sizes
  • Fits 5.5 rod systems

Note: Instruments for these procedures are available per request. Contact us today for more information regarding our instrumentation.
