Cervical Plate
510K Clearance # K201979
PRODUCT FEATURES
  • Simple, reliable system
  • Universal driver for screws & locking tabs

Plate:

  • Plates are available in 1, 2, 3, & 4 levels
  • 2.3mm thick walls designed to reduce the potential risk of dysphagi
  • Large graft windows for visual cage confirmation
  • Locking tab prevents the migration of screws

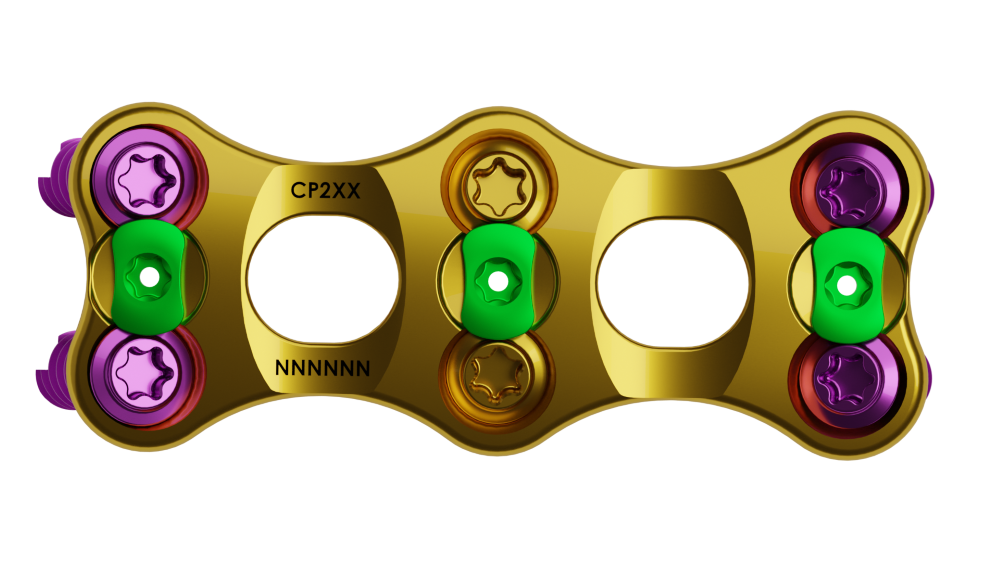

Cervical Plate image shows large graft windows for visual cage confirmation

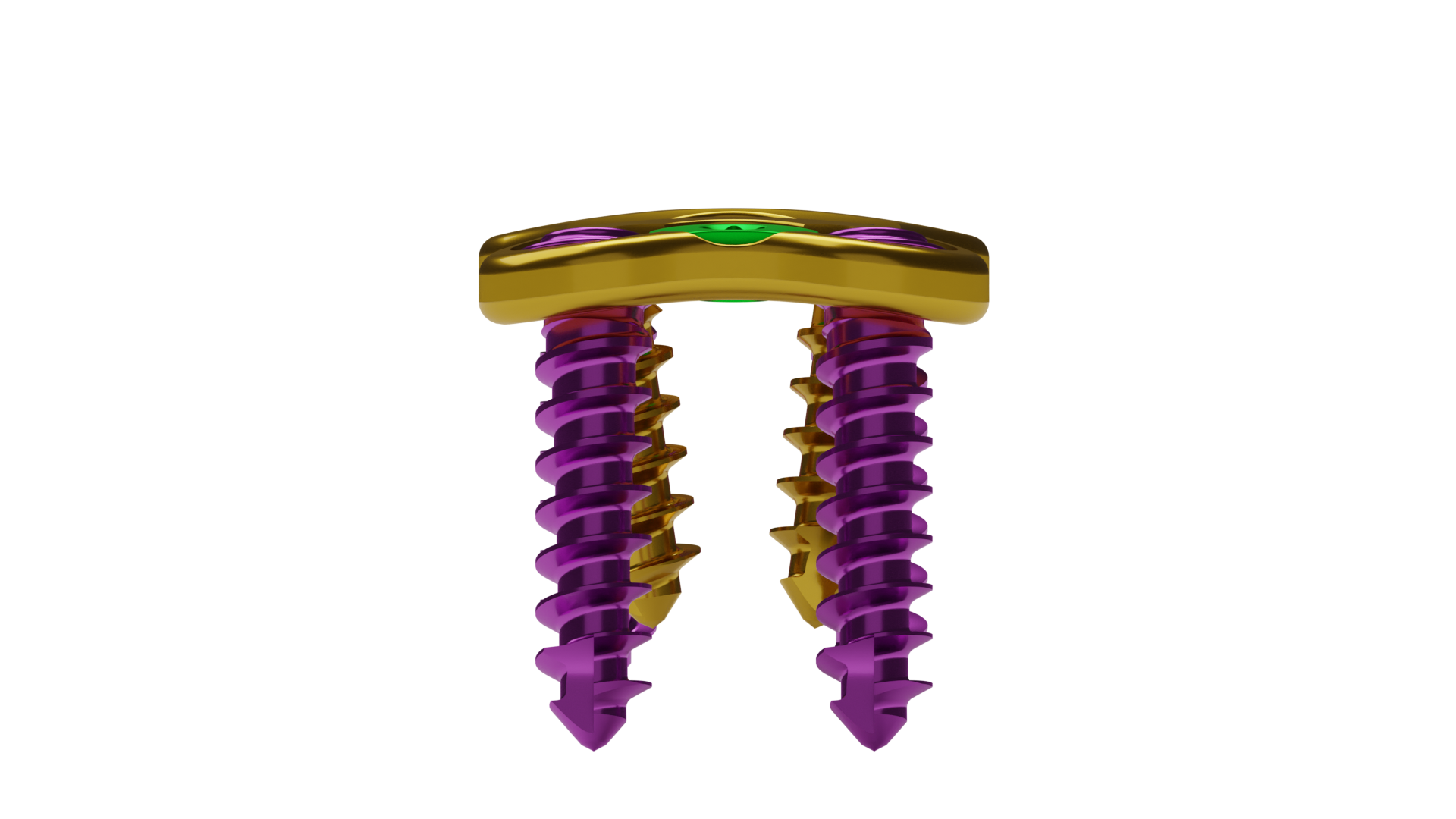

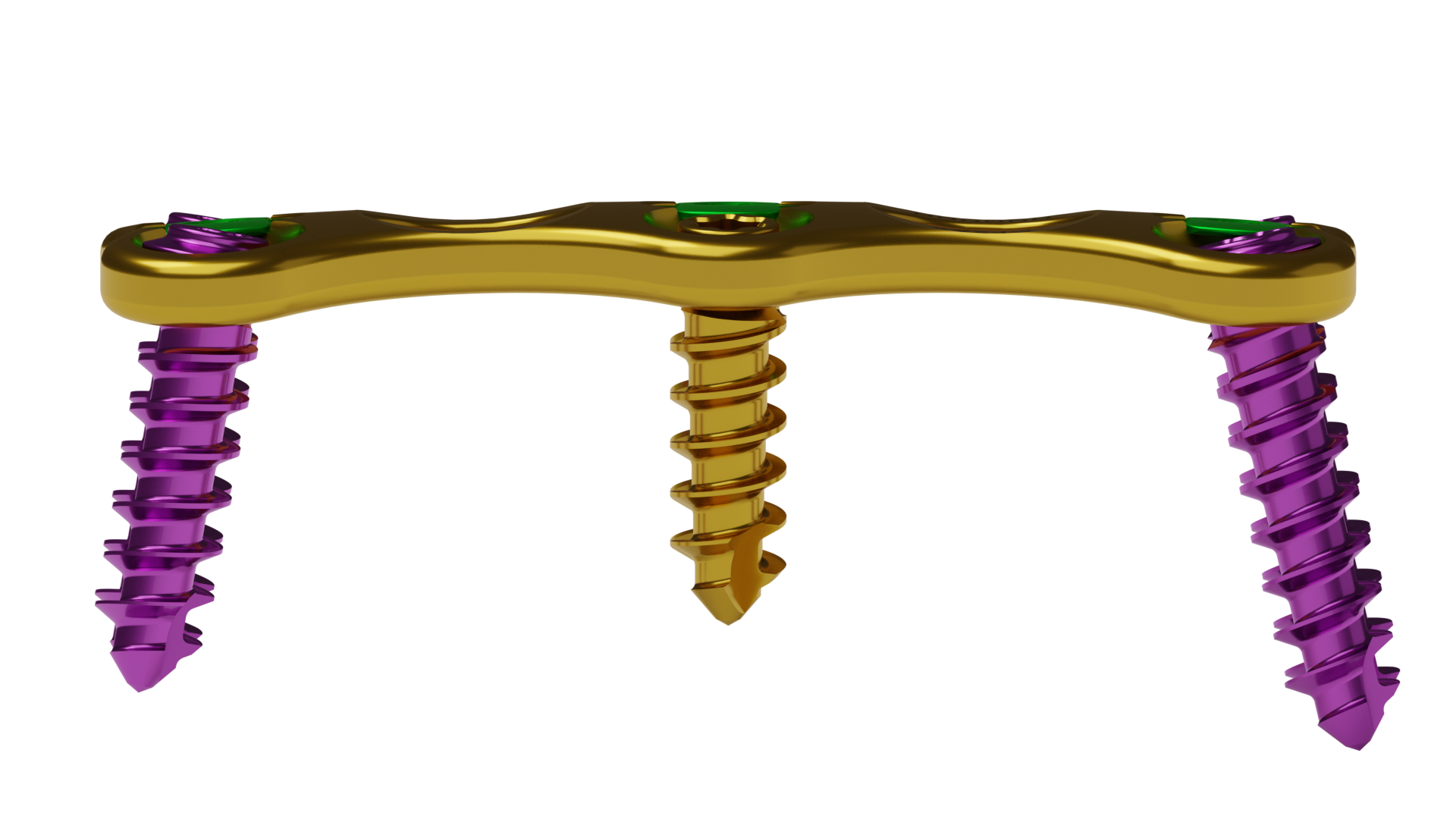

Cervical plate with narrow body and slender look

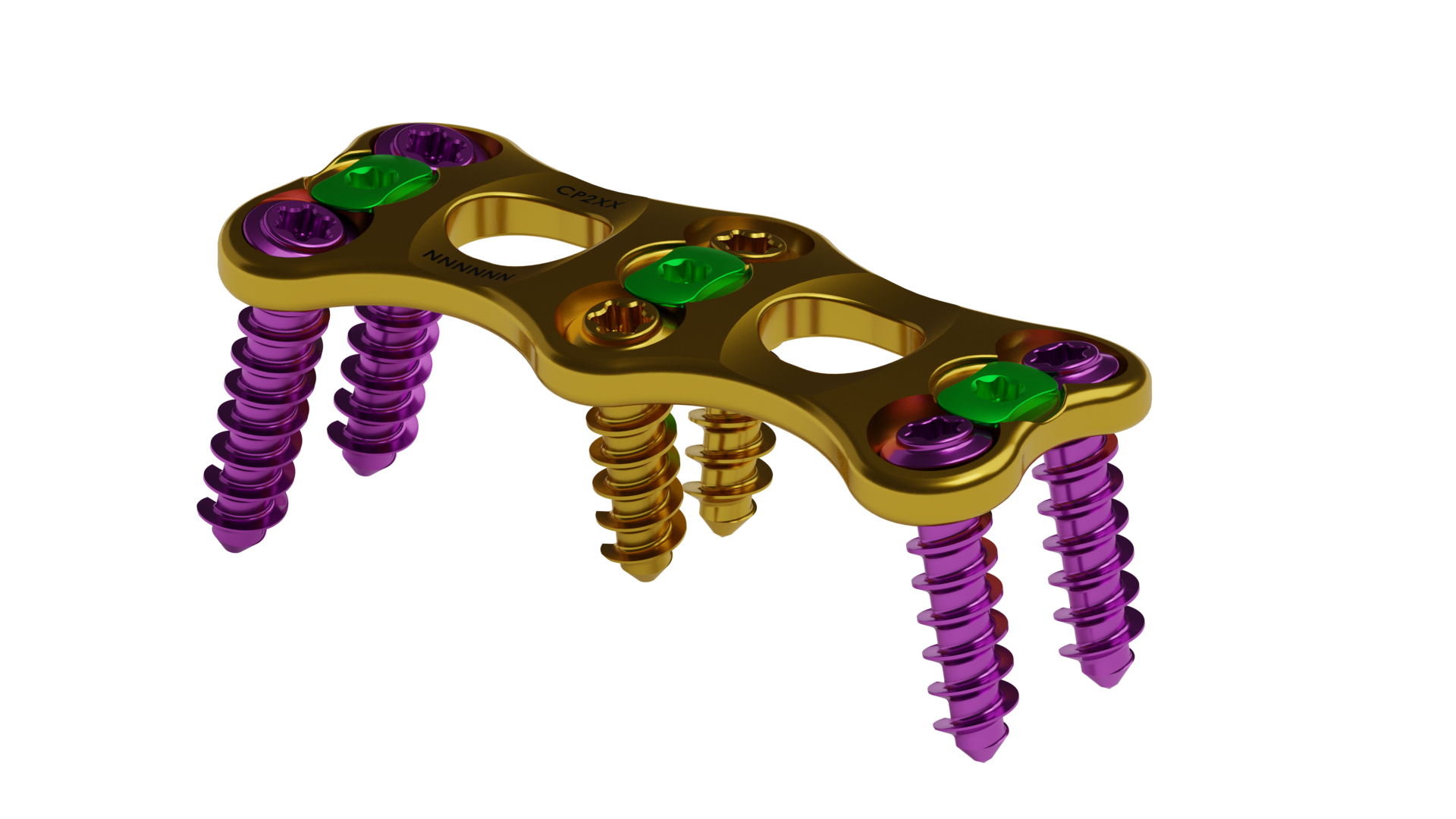

Cervical Plate with Narrow body and Secure Locking Tabs
IMPLANT PROFILES

PLATES

Level 1

Level 2

Level 3

Level 4

LENGTHS

14 – 28mm | 2mm

28 – 48mm | 3mm

47 – 71mm | 3mm

60 – 84mm | 4mm

SCREWS

Fixed

Variable

SCREW FEATURES
  • 14 degrees of polyaxial screw rotation
  • 4.00mm & 4.25mm diameter screws
  • Fixed & Variable screw options

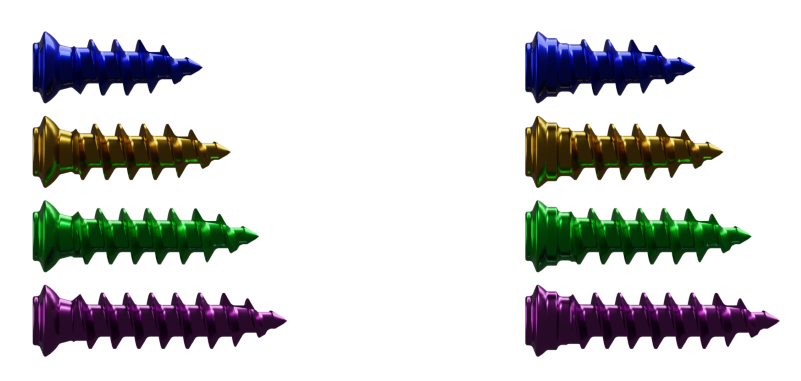

SCREW PROFILES

SCREWS

4.00mm

4.25mm

LENGTHS

10 – 16mm | 2mm Fixed & Variable

10 – 16mm | 2mm Fixed & Variable

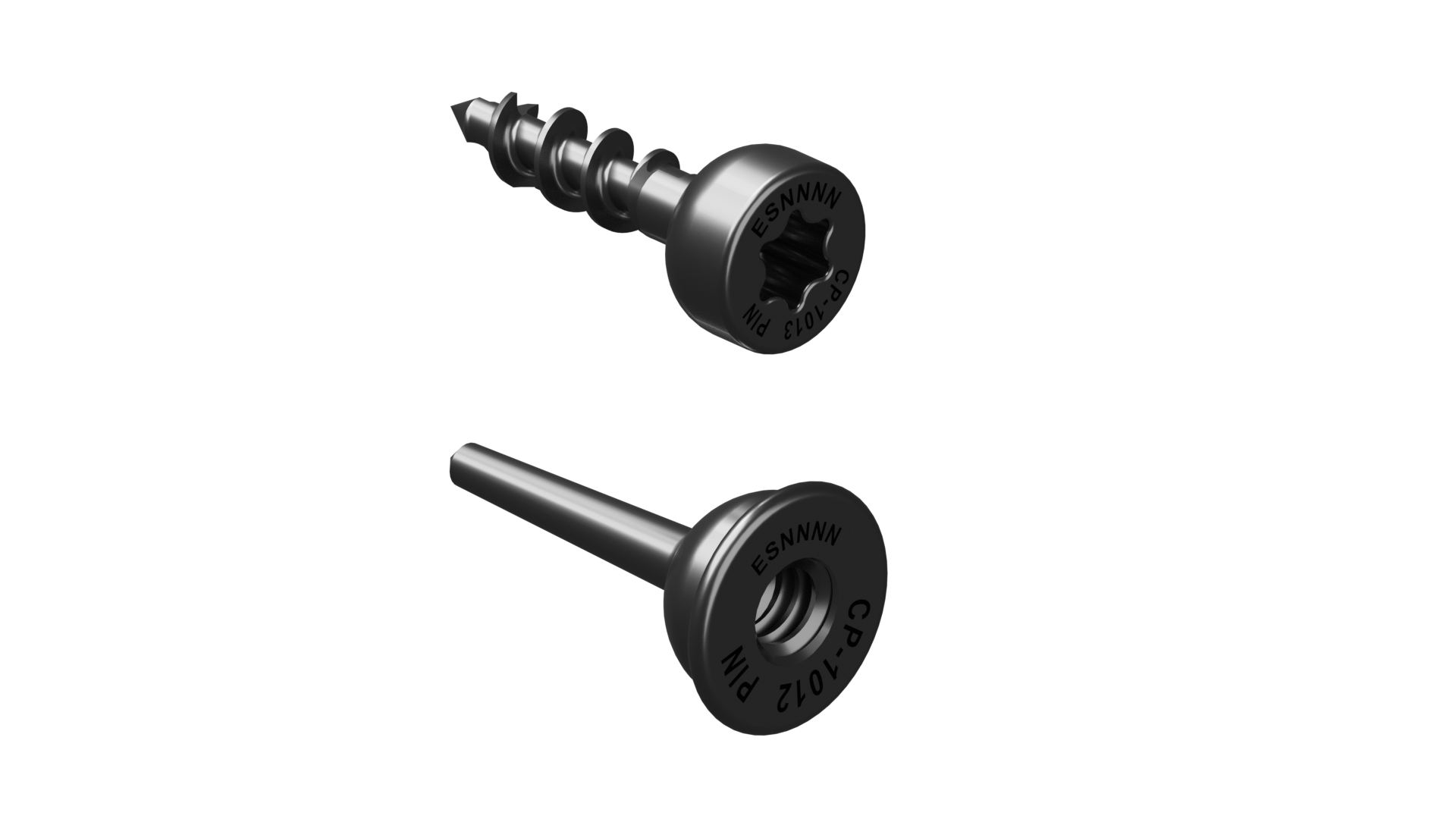

PLATE PINS





Threaded







Straight

Cervical Plate IFU

Note: Instruments for these procedures are available per request. Contact us today for more information regarding our instrumentation.
