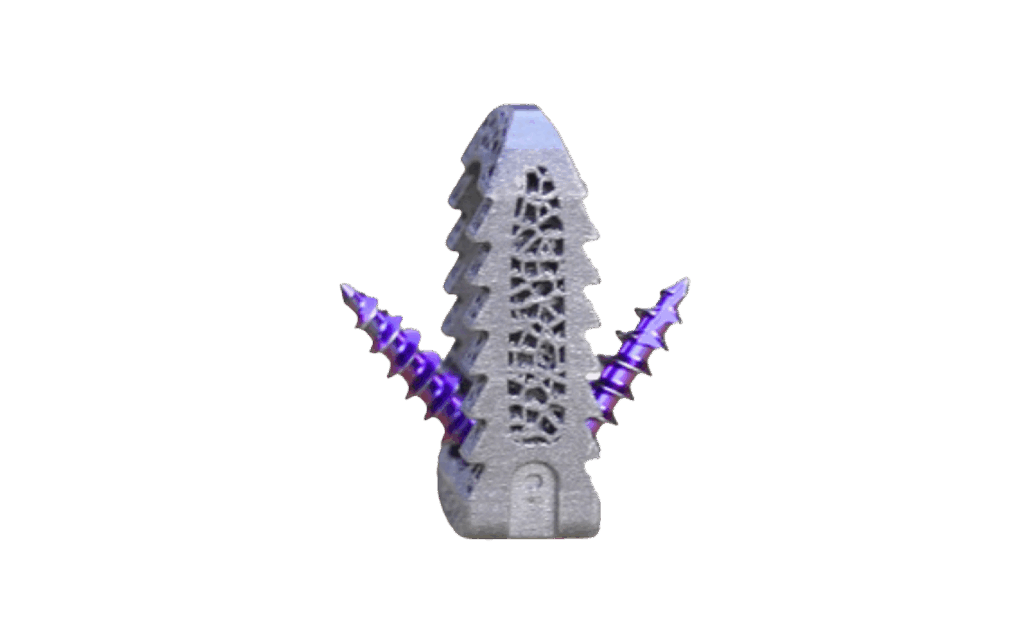

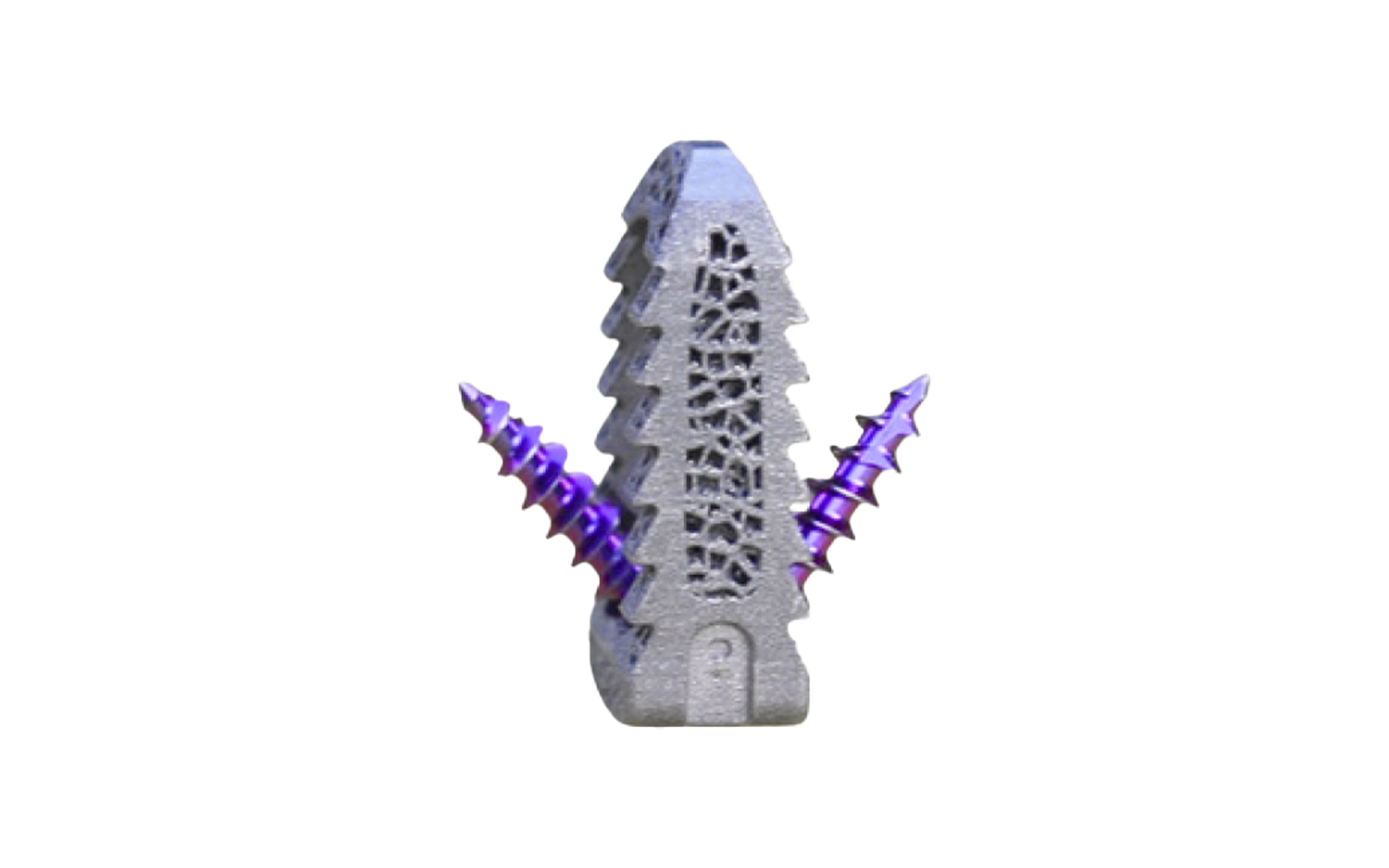

3D Titanium Posterior SI System

Product Features

3D Titanium
Built-In Locking tab
SI Compression and Transfixation of SI joint
Aggressive Lordotic teeth to resist migration

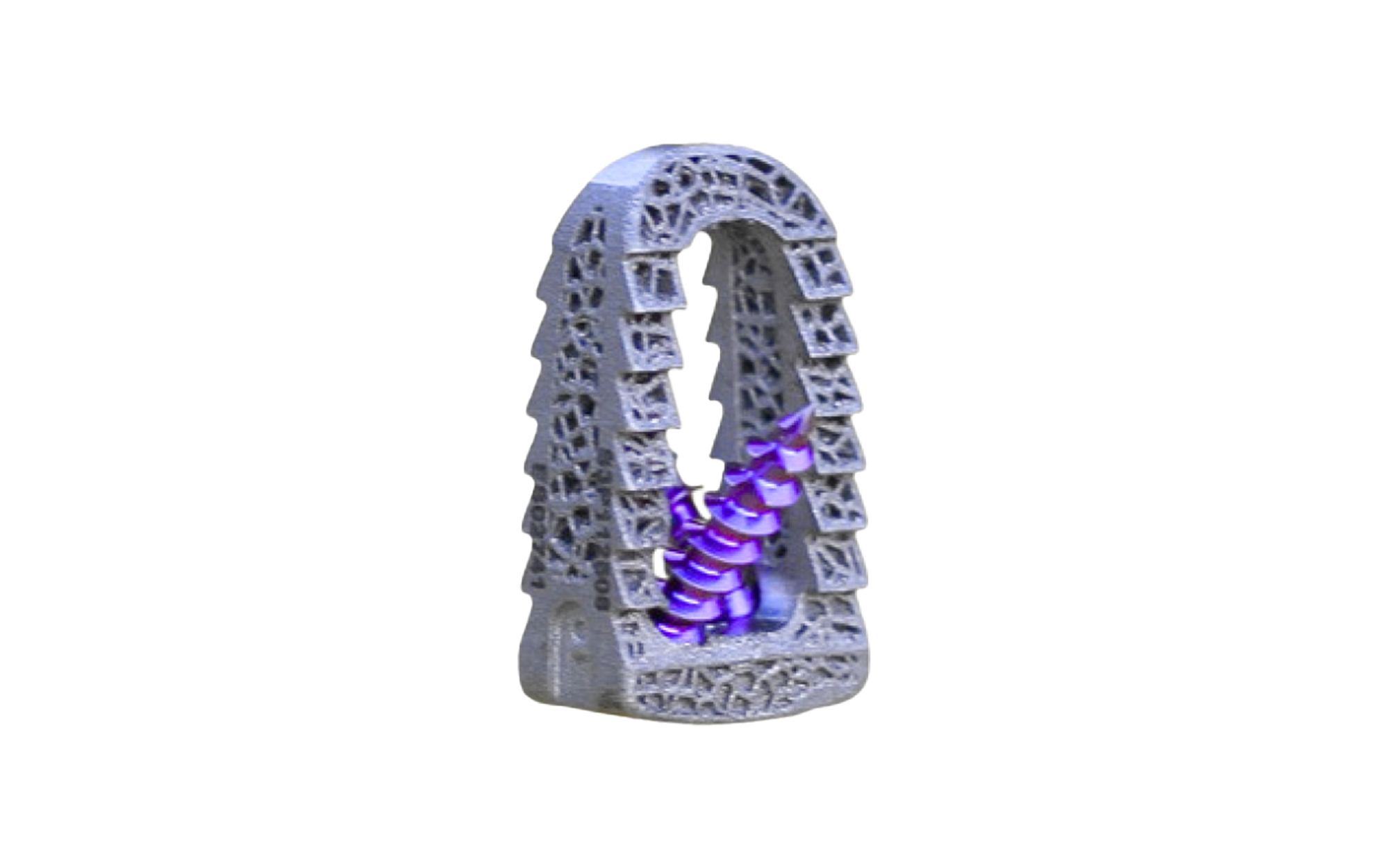

Large central opening for maximum bone graft material
Tapered nose and rounded edges allows for ease of insertion

Implant Profiles

Lordotic: 25mm X 14mm X 8mm

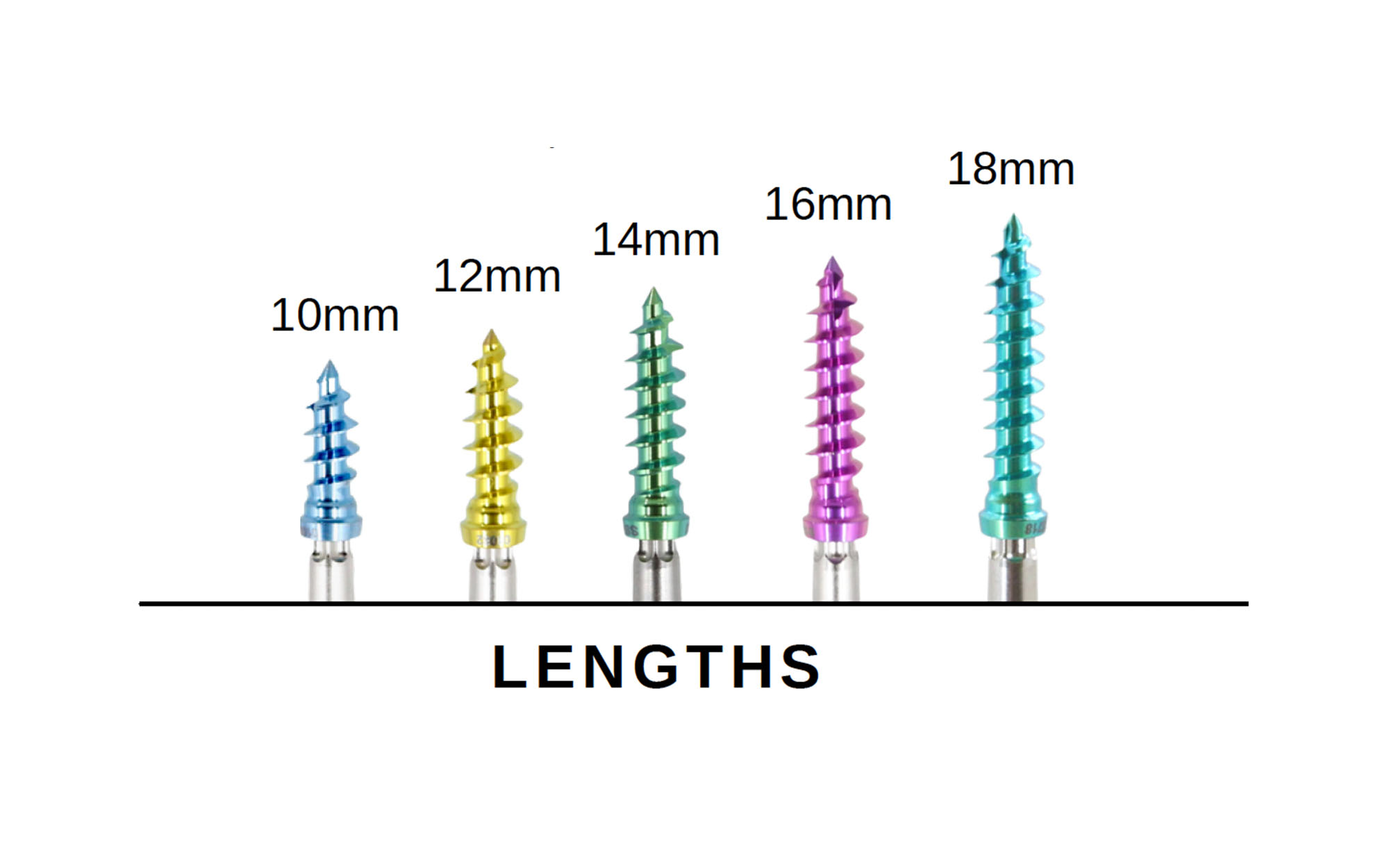

Screw Options

Self-Drilling, Self-Tapping

Standard T10 Hexalobe driver

Diameters: 3.5, 3.75mm

IFU: 3D Printed Titanium Posterior SI Implant

Contact Us Today

Note: Instruments for these procedures are available per request. Contact us today for more information regarding our instrumentation.

Send Us an Inquiry

Eminent Spine

Eminent Spine is dedicated to manufacture biomechanically sound spinal implants and focus on surface technology.
