Pedicle Screw System (Open & MIS)
PCB6 Series
5.50, 6.50, 7.50
35mm-50mm
Surfaced and C3
PCB5 Series
5.50, 6.50, 7.50
30mm-50mm
Surfaced and C3
PC5 Series
4.75, 5.50, 6.50, 7.50
30mm-55mm
C3
PCB3 Series
4.75, 5.50, 6.50, 7.50
40mm-50mm
Surfaced and C3
PCB2 Series
4.75, 5.50, 6.50, 7.50
30mm-55mm
Surfaced and C3
PC2 Series
4.75, 5.50, 6.50, 7.50
30mm-55mm
Surfaced and C3
PNB2 Series
4.75, 5.50, 6.50, 7.50
30mm-55mm
Surfaced and Nav
PNB1 Series
5.50, 6.50, 7.50
30mm-55mm
Surfaced and Nav
PSB2 Series
6.50
40mm-50mm
Surfaced and S3
PSB1 Series
6.50
35mm-50mm
Surfaced and S3
PS2 Series
4.50, 5.00, 5.50, 6.50, 7.50, 8.00
35mm-55mm
S3
PS1 Series
4.50, 5.00, 6.50, 7.50
35mm-55mm
S3
IHP Series
5.00, 6.00, 7.00
40mm-50mm
Double Lead
ICP Series
5.00, 5.50, 6.00, 6.50, 7.00, 7.50, 8.00
40mm-50mm
Double Lead
MIS Pedicle Screw Product Features
- Universal size and color tulip
- Friction Head tulip
- Tapered Tulip (minimizes facet impingement)
- Capped towers prevent spaying
- Strong, clean towers
- Easy tab break-off
- Triple Lead Threads
- Universal inserter for all implant profiles
Open Pedicle Screw Product Features
- Material: Machined Titanium
- Triple Lead Screw Design
- “S3” style, standard non-cannulated screw profile
- “C3” style, cortical/cancellous cannulated screw profile
- Tapered nose allows for ease of insertion
- 5 tulip options for open or MIS technique
- Friction tulip for constant head control
- Screw diameters options of 4.50, 4.75, 5.00, 5.50, 6.00, 6.50, 7.00, 7.50, and 8.0
- Screw lengths 30-55, 5mm lengths
- Fits 5.5mm rod
- 4.0mm hex set caps
Crosslinks
Material: Titanium | Telescopic fit sizes
Fits 5.5 Rod Systems
Sizes
Small (32mm-42mm)
Medium (42mm-58mm)
Large (58mm-74mm)
Set Caps
4.0m Hex and 4.0mm Grit Blasted Hex
Surface Technology: See the Difference
Machined Titanium
Surfaced Titanium
Surface Technology
The purpose of surface technology is to accelerate the osseointegration process.

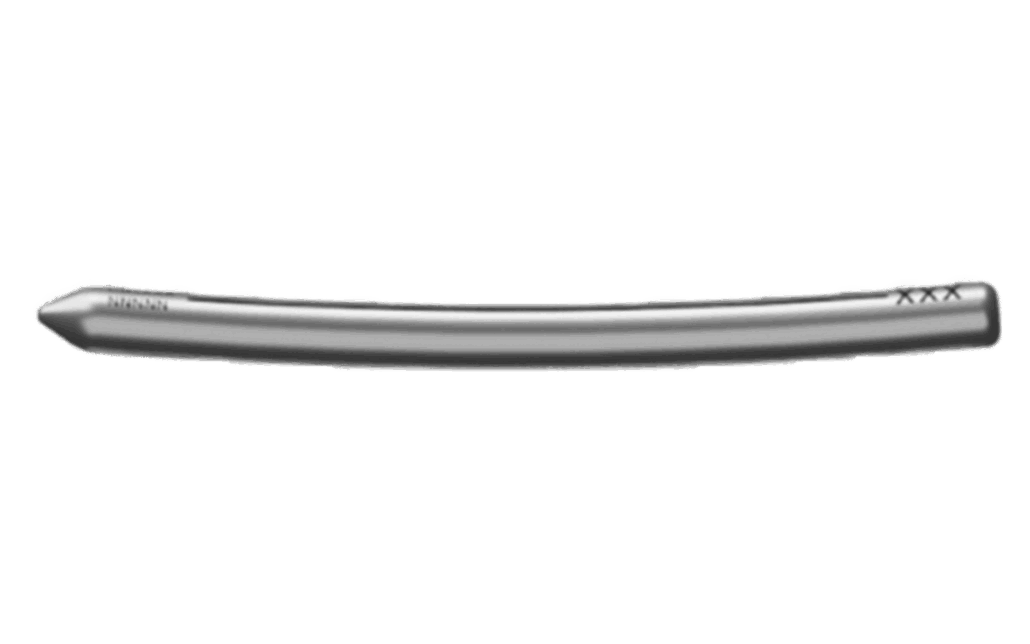

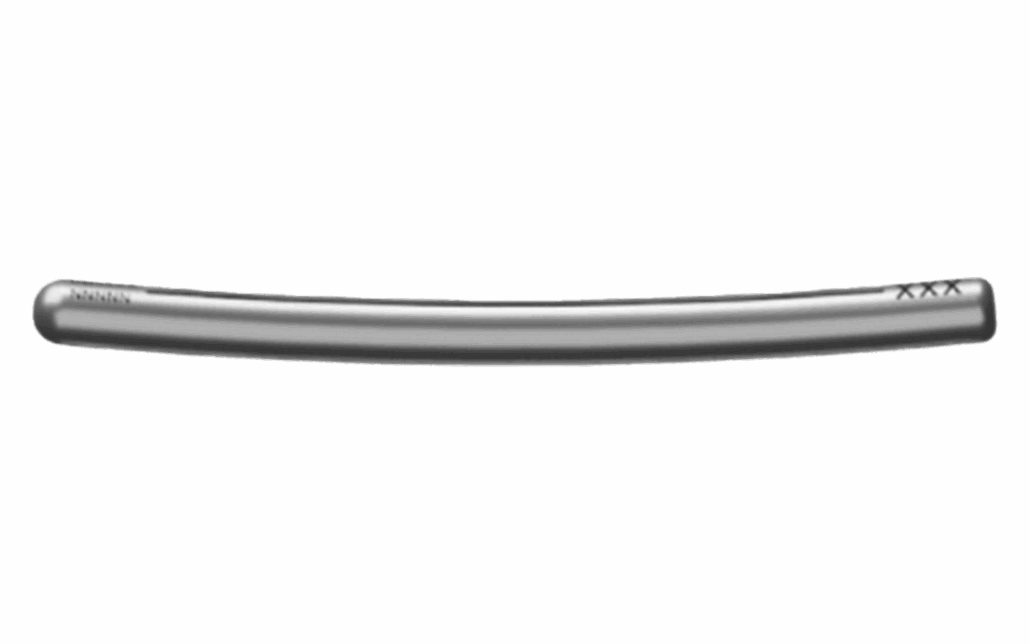

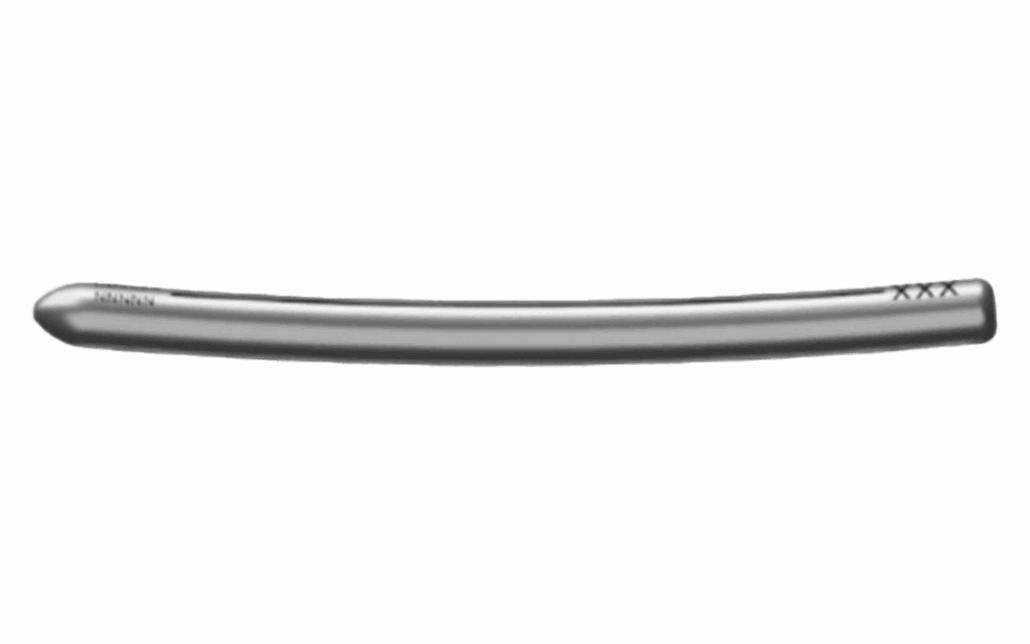

Line present to assist the positioning of the rod.
